Page Objects with Partial Classes and Properties- WebDriver C#

Editorial Note: I originally wrote this post for the Test Huddle Blog. You can the original text on their site.

This is the second article from the WebDriver Page Objects Series. It is dedicated to creating page objects with partial classes without the Selenium.Support NuGet.

In my previous article from the series, I showed you how to use the standard page object model that comes from the Selenium.Support NuGet. However, I believe it has a couple of drawbacks. First, you need to install an additional NuGet package, which is an extra code dependency. Moreover, you do not have a full control over how the elements are located though the PageFactory class and the FindsBy attributes. If you want to create a SelectElement, you cannot since the FindsBy variables/properties return directly IWebElement.

Two years ago while we were working on the first version of the BELLATRIX test automation framework, I did this research so that we can find the most convenient way for creating page objects.

Test Case

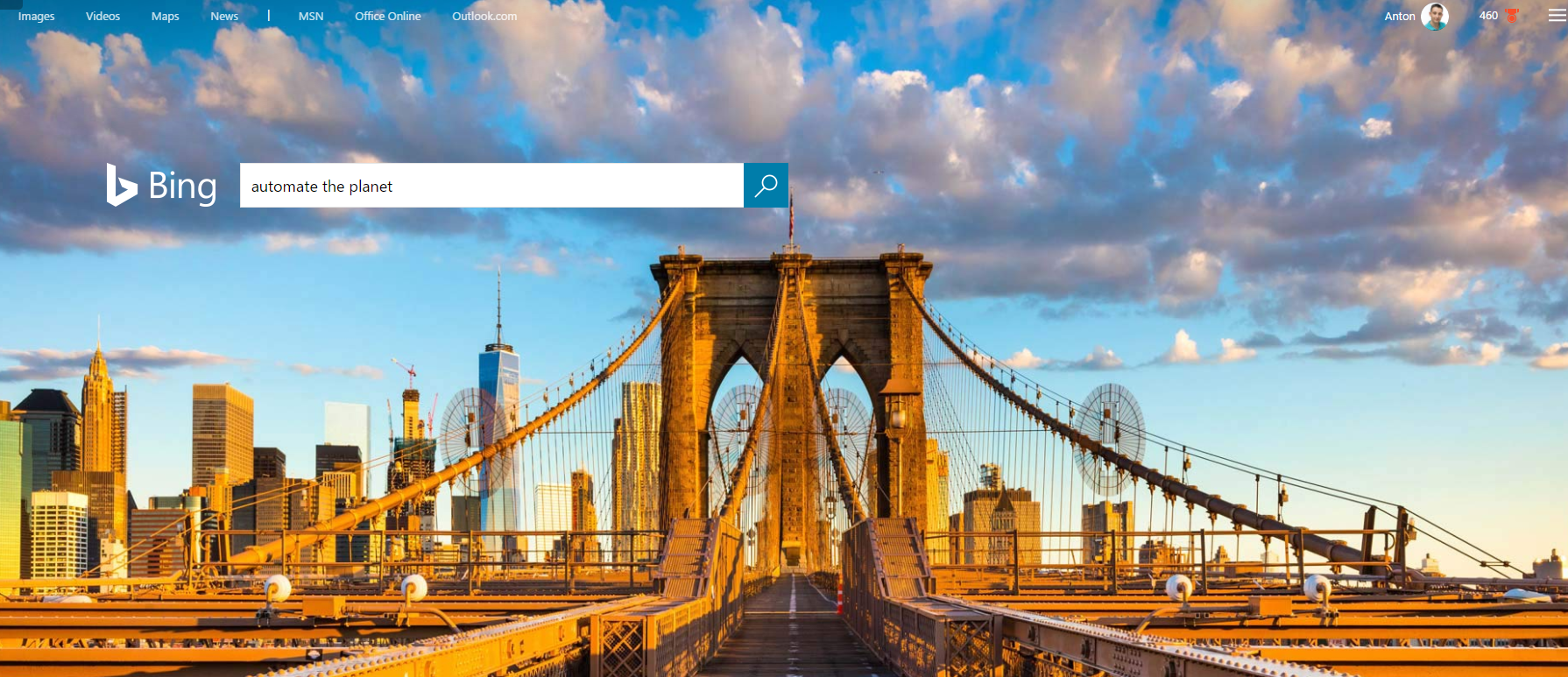

For the examples, I will use once again the SearchEngine’s home page, called SearchEngineMainPage. The main test case on this page is to search for a term and then assert the count of the returned results.

Page Objects through Partial Classes Revised

SearchEngineMainPage class’s definition:

• SearchEngineMainPage

  Contains the constructor(s) and the action methods

• SearchEngineMainPage.Map

  Stores all web elements’ properties

• SearchEngineMainPage.Asserter

  holds all assertions

• Product installer services

SearchEngineMainPage

using OpenQA.Selenium;
namespace HuddlePageObjectsElementsStringProperties.ImprovedVersion
{
    public partial class SearchEngineMainPage
    {
        private readonly IWebDriver _driver;
        private readonly string url = @"searchEngineUrl";
        public SearchEngineMainPage(IWebDriver browser)
        {
            _driver = browser;
        }
        public void Navigate()
        {
            _driver.Navigate().GoToUrl(url);
        }
        public void Search(string textToType)
        {
            SearchBox.Clear();
            SearchBox.SendKeys(textToType);
            GoButton.Click();
        }
    }
}

The only difference with the previous version of this file is that we do not call PageFactory.InitElements(browser, this); in the constructor.

SearchEngineMainPage.Map

using OpenQA.Selenium;
namespace HuddlePageObjectsElementsStringProperties.ImprovedVersion
{
    public partial class SearchEngineMainPage
    {
        public IWebElement SearchBox
        {
            get
            {
                return _driver.FindElement(By.Id("sb_form_q"));
            }
        }
        public IWebElement GoButton
        {
            get
            {
                return _driver.FindElement(By.Id("sb_form_go"));
            }
        }
        public IWebElement ResultsCountDiv
        {
            get
            {
                return _driver.FindElement(By.Id("b_tween"));
            }
        }
    }
}

The primary discrepancy between the two versions is here. We locate the elements though the WebDriver’s FindElement method instead of using the FindsBy attributes.

If you are using WebDriver often, you may find useful my Most Complete Selenium WebDriver C# Cheat Sheet. All you need to know- the most basic operations to the most advanced configurations.

SearchEngineMainPage.Asserter

using Microsoft.VisualStudio.TestTools.UnitTesting;
namespace HuddlePageObjectsElementsStringProperties.ImprovedVersion
{
    public partial class SearchEngineMainPage
    {
        public void AssertResultsCount(string expectedCount)
        {
            Assert.AreEqual(ResultsCountDiv.Text, expectedCount);
        }
    }
}

The usage of the page object in tests stays the same.

In future articles, I will share with you other modifications of the design pattern that can make your tests even more maintainable.
